 Catheter Coating UV Curing Solutions



Powerful UV Solutions for UV Medical and Catheter Coating Curing

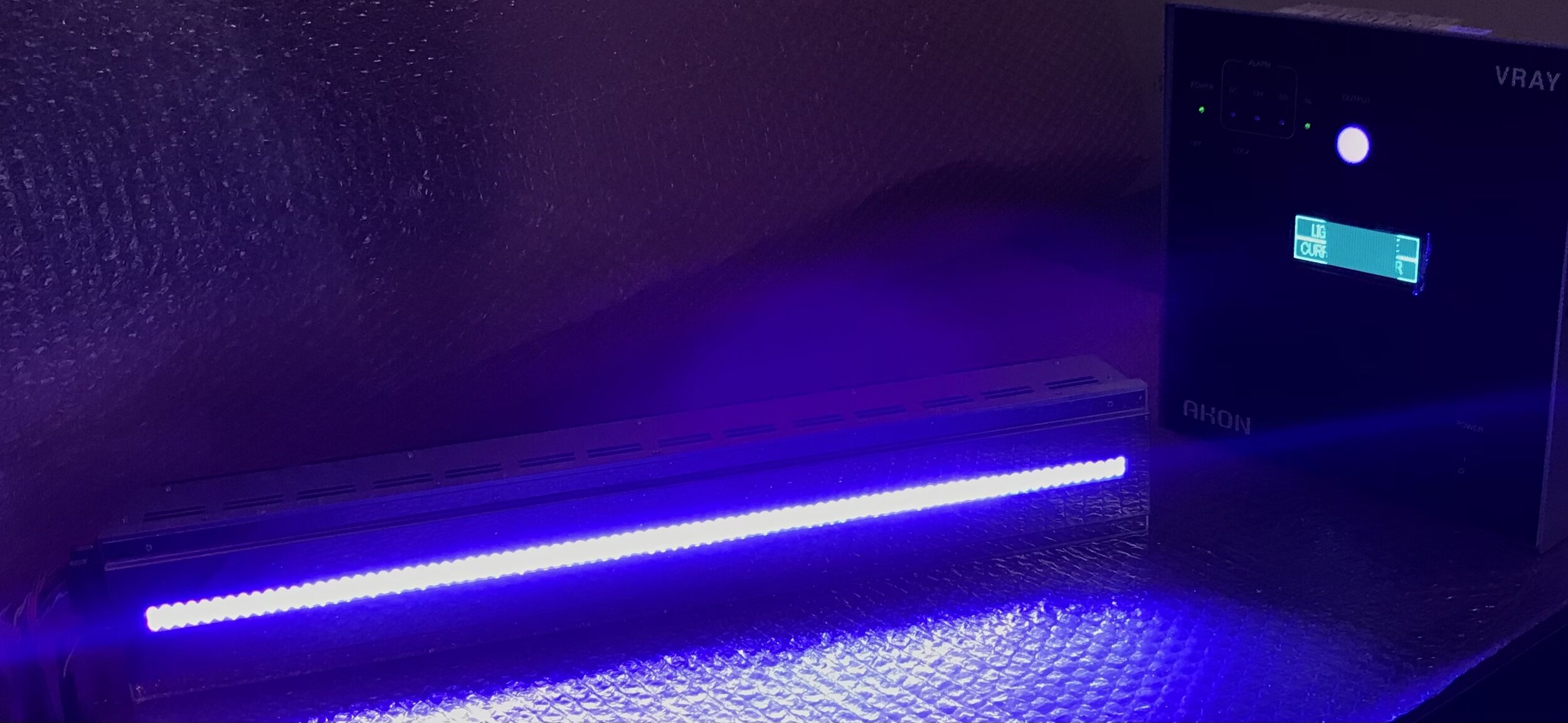

Released in late 2020, UVE450x10-365 and UVE300x10-365 are brand new UV devices optimized for fast coating curing. Engineered specifically to meet catheter UV coating and medical application needs, it comes with 2 rows of powerful, energy efficient Japanese LEDS. And with a programmable power supply, our UVE line brings exceptional control and flexibility to UV curing.

pcb inspection closeup.jpg

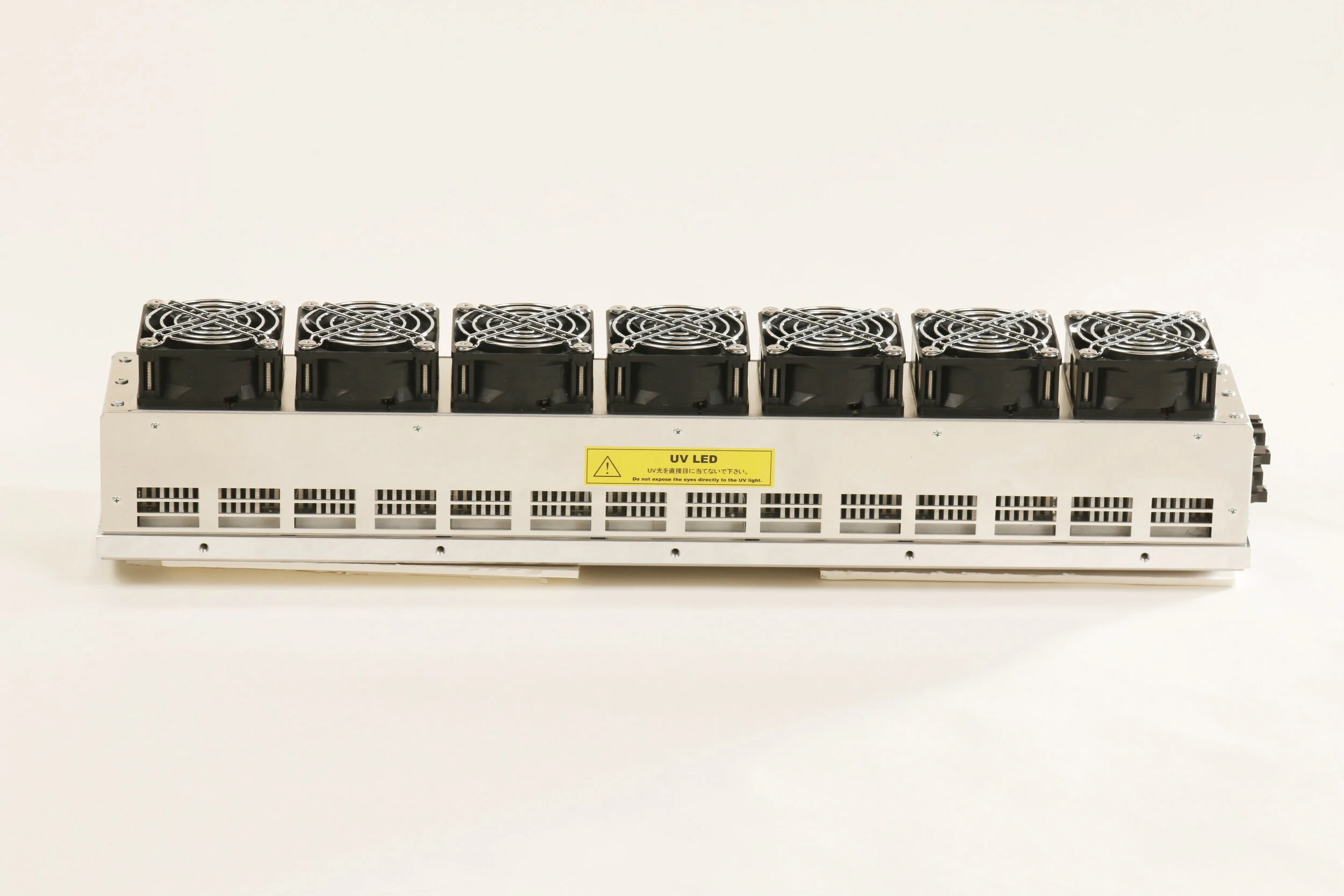

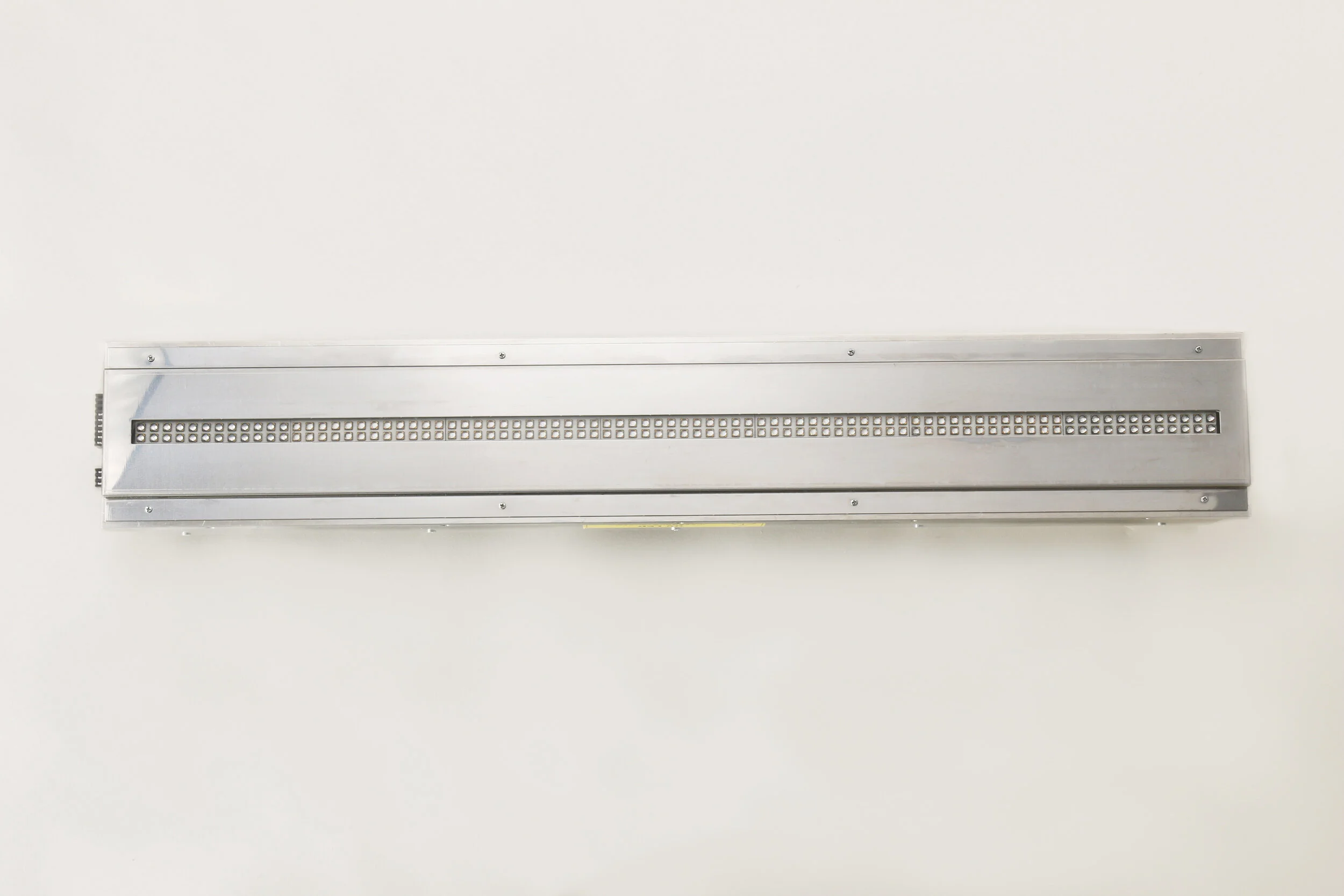

UVE Specs


UVE450x10
Illuminance 800-3000mW/cm2 (depending on work distance)
Work Distance 10 - 50 mm
Irradiation Area 462 x 14 mm
Effective Area 420 mm
UVE300x10
Illuminance 800-3000mW/cm2 (depending on work distance)
Work Distance 10 - 50 mm

Shared Features
Wavelengths 365, 385, 395, 405nm
Power Consumption 1200 Watts
Cooling System Air Cooling Fan
Power Supply VRAY 16Ch. 100-240VAC
Safety LED Overheat Protection Alarm


Interested in other narrow band solutions for medical, automotive, and electronic curing and inspection? Check out the rest of our line UV LEDs in our UV LED Line Catalogue.

Have questions or need a rep? We pride ourselves on quality service.
