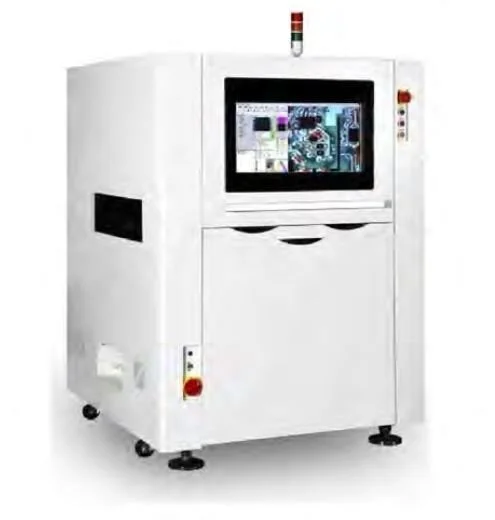

Hurricane HY-P520
| HY-P520 | |
|---|---|
| Input Voltage | AC220V±10% 50/60HZ2KW |
| Dimensions | 1300x1200x1600mm |
| Weight | About 500KG |
| Programming Feature | Manual Programming or Automatic by AOI's coordinate data |
| Hardware / Software | |
|---|---|
| MAX Warpage | 2% of PCB's diagonal or < 5mm |
| Available PCB Size | 50mmx50mm ~ 400mmx350mm |
| PCB Thickness | ≤6mm |
| MAX PCB Weight | ≤3KG |
| MAX PCB Height | Above: ≤85mm, Bottom: ≤35mm |
| PCB Holding Edge | ≥3.5mm |
| Conveyor Speed | 170mm/s(MAX) |
| Working height | Transfer track from ground: 900±20mm |
| Conveyor direction | Standard: left-right; Optional right-left |
| Conveyor chain | Stainless steel chain |
| Conveyor width adjustment | Manual |
| Preheating Method | Above: hot-blast+infrared/bottom: infrared |
| Operating system | Over and above Windows 7 |
| Interface languages | Chinese / English |
| Monitor | 22 inch color monitor |
| Programming | Support general parts library and CAD data input |
Our Adjustable, Efficient Selective Spraying Machine
The HY-P520 is a powerful machine used to selectively spray flux according to specific coordinates on printed circuit boards (PCBs). With its specialized technologies, it can easily be implemented in any production line to keep your rework fast and accurate.
This machine can be combined with other Hurricane machines to form our powerful Fully Automatic DIP Production Line. For more information on this efficient, highly recommended system, click here.
Features
Intelligent spraying system, saving the cost of flux
Special conveyor designed for easy maintenance
CAD Input for easy programming
Auto nozzle clearing feature
Applicable for special glue of PCB and conformal coating
Nozzle Options: linear / atomizing nozzle
Spraying Efficiency: less than 1s/point
Adjustable Spray Area: 2mm-10mm/point
Transfer Method: single track transmission
Spray Method Options: selective spray & full spray
