MS-1000A SMT & BGA Inspection Underscope

Options

  • Base Plate Holder MS-H-01

    • The three holders fix the base plate to the stage.
      You can adjust the size freely using the magnet.

  • Black Stage MS-BS-01

    • You can slide the base plate on the stage (230 x 300mm) and even rotate it.

  • Backlight Guide System BL-SYSTEM-03

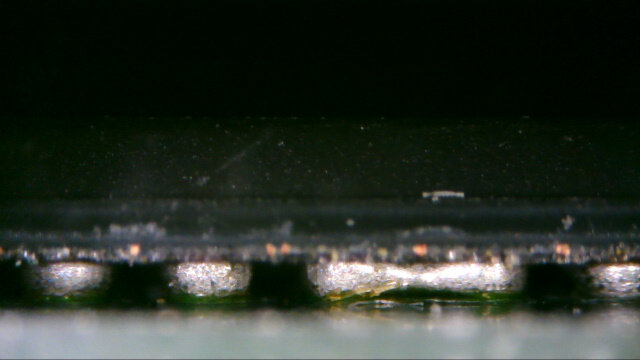

    • You can confirm the bridge by flashing the LED from the opposite direction of the
      camera.

  • Camera Fixing Mechanicsm HF0001 & 0002 + Stand

    • Holds the camera to a fixed position. You can move the mechanism up and down, to the left and right, forward and backward, and even rotate it to a fixed angle.

  • Prism Holder BL-02-03

    • You can flash a backlight on a BGA package which is only 5mm square.

Operating Environment on PC

  • Standards : USB2.0 compliant

  • Display input : Color camera for NTSC or PAL

  • PC operating environment : Hardware : DOS/V AT compatible with USB2.0 interface,

  • CPU : Pentium III 800Mhz or above

  • Note : Not compliant to Expanded USB (PCI and CardBUS)

  • Operating system : Windows 2000, Windows XP

  • Display size : 640 x 480 dots (VGA)

  • Frame rate : 30 frames/second

  • Operating humidity : Under 80% (without dew)

  • Cable length : USB interface cable : approx. 1.2 meters, USB cable: approx. 1.8 meters

The Best Seller for BGA, CSP, QFN most SMT challenge inspection

The MS-1000A is a BGA (Ball-Grid Array) inspection microscope. It’s generally used to visibly check soldered points and surfaces, with very reliable inspection and analysis results. Because of its ergonomic and streamlined design, you can inspect freely, as if using a pen. Some unique example uses of this scope are inspecting the interior of a package with the optional backlight system, and inspecting the lead section of a QFP from the side. Connecting the device thru USB into PC simple and straightforward.

Two Models Available

  • MS-1000A

    • x110 Magnification for detailed first row inspection. You can observe the soldered parts of the BGA package on your PC and save the displayed image in JPEG or BMP format at VGA resolution

  • MS-1000A-EX

    • Adjustable x70 to x110 magnification. This microscope is useful when you want to view a particular spot at wide angle and at high magnification. And, with the backlight, you can observe the fillet state, displacement, deformation and more as a silhouette

Specifications

  • Camera: 2 million pixel CMOS

  • Lens: Fixed (MS-1000A) or variable (MS-1000A-EX) magnification lens

  • Magnification: (on 20-inch monitor) 70x to 110x

  • Connection: PC (USB2.0)

  • Supported OS: Windows 10, 8, 7

  • Accessories: Prism for BGA observation (2mm thickness), Prism, viewer software for QFP observation , storage case
