SP-650
| SP-650 | |
|---|---|
| Applicable frames (Internal dimensions) Cast | 205×255mm, 385×385mm, (485×535mm) |
| Applicable frames (Internal dimensions) Pipe | 270×350mm,470×570mm, 580×680mm |
| Mask | Metal screen (SUS:t=0.15, 0.2, 0.25, 0.3), Silk screen |
| Applicable circuit board size | 50×50mm to 350×450mm |
| Applicable circuit board thickness | 0.125 to 2mm |
| Vacuum pump | Option |
| Fine adjustment | By table(X,Y,θ) Micro meter |
| Squeegee size | (t)9×(W)50×(L)150mm with handles |
| Squeegee hardness | 80° |
| Table dimensions | (W)400×(D)520×(H)10mm |
| External dimensions | (W)400×(D)1030×(H)480mm |
| Weight | 25kg |

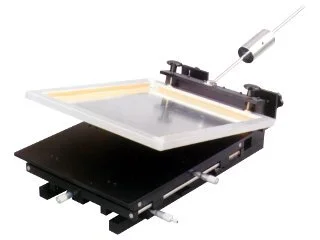

Our Largest Manual Screen Printer
This SMT manual screen printer uses metal masks to apply solder paste (solder cream) and adhesives to printed circuit boards. Both aluminum cast frames and aluminum pipe frames can be used.
Features
Both aluminum cast and aluminum pipe frames can be used.
Fine tuning of X, Y, and θ can be performed simply.
